Description
- For SAE J609 A-B flange engine
- For IP 47-59-66 series pumps
- 25.0mm hollow shaft
- 25 Hp, 18.38 kW max power
- Input speed 3100 rpm
- Output speed 1425 rpm
- 2.2:1 reduction

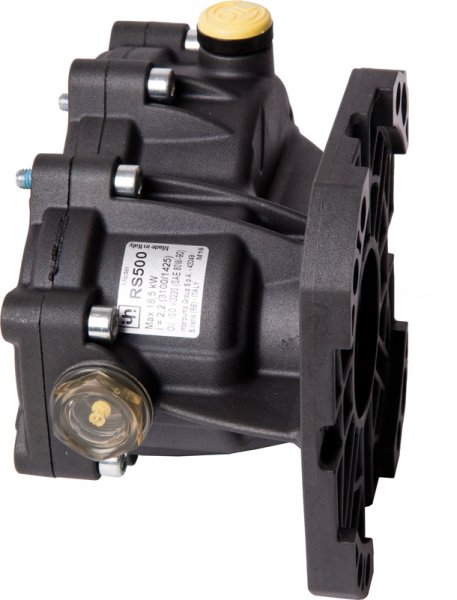

Interpump Gearbox for Engines – 25mm Shaft
Interpump Gearbox for Engines – 25mm Shaft
- For SAE J609 A-B flange engine
- For IP 47-59-66 series pumps
- 25.0mm hollow shaft
- 25 Hp, 18.38 kW max power
- Input speed 3100 rpm
- Output speed 1425 rpm
- 2.2:1 reduction
Compare
Related products
Interpump Gearbox for Engines – 1″1/8 Shaft
Enquire Now- For SAE J609 A-B flange engine
- For IP 47-59-66 series pumps
- 1"1/8, 28.6mm hollow shaft
- 25 Hp, 18.38 kW max power
- Input speed 3100 rpm
- Output speed 1425 rpm
- 2.2:1 reduction
Quick ViewB24 Gearbox for Engines – 1″ Shaft
Enquire Now- For SAE J609b flange engine
- For IP 47-66 series pumps
- 1", 25.4mm hollow shaft
- 24 Hp, 17.7 kW max power
- Input speed 3100 rpm
- Output speed 1450 rpm
- 2.176:1 reduction
- See Tech Documents for other pump compatibilty
Quick ViewInterpump Gearbox for Engines – 3/4″ Shaft
Enquire Now- For SAE J609 A flange engine
- For IP 44-49-50-53-58...
- ...60-63 series pumps
- 3/4", 19.05mm hollow shaft
- 6.5 Hp, 4.8 kW max pump power
- Input speed 3450 rpm
- Output speed 1450 rpm
- 2.4:1 reduction
Quick ViewInterpump Gearbox for PTO Drive
Enquire Now- For IP 47-59-66 series 1000 rpm pumps
- 1"3/8 6 spline male PTO shaft
- 9.5 Hp, 7 kW max power
- 1:1.9 mulitplier
- Input speed 540 rpm
- Output speed 1000 rpm
- PTO shaft to ASAE S203.13 (DIN9611-1)
Quick ViewInterpump Engine Mounting Flange
Enquire Now- For IP 44-50-53-58...
- ...60-63 series pumps
- To SAE J609 A-B engines
- Cast aluminium construction
Quick ViewB18 Gearbox for Engines – 1″ Shaft
Enquire Now- For SAE J609b flange engine
- For IP 47-66 series pumps
- 1", 25.4mm hollow shaft
- 18 Hp, 13.0 kW max power
- Input speed 3100 rpm
- Output speed 1450 rpm
- 2.176:1 reduction
- See Tech Documents for other pump compatibilty
Quick ViewInterpump Gearbox for Engines – 1″ Shaft
Enquire Now- For SAE J609 A-B flange engine
- For IP 47-59-66 series pumps
- 1", 25.4mm hollow shaft
- 25 Hp, 18.38 kW max power
- Input speed 3100 rpm
- Output speed 1425 rpm
- 2.2:1 reduction
Quick ViewInterpump Gearbox for Electric Motors
Enquire Now- For IEC100/112 B3 B14 motors
- For IP 69 series 600 rpm pumps
- 28mm hollow shaft
- 7.5 Hp, 5.5 kW max power
- Input speed 1450 rpm
- Output speed 600 rpm
- 2.4:1 reduction
Quick ViewHypro Gearbox for Engines – 1″ Shaft
Enquire Now- For B&S & Honda engines
- For Hypro 2400 & 2430 series pumps
- 1", 25.4mm hollow shaft
- 18 Hp, 13.23 kW max power
- 1.8:1 reduction engines
Quick ViewB24 Gearbox for Engines – 1″1/8 Shaft
Enquire Now- For SAE J609b flange engine
- For IP 47-66 series pumps
- 1"1/8, 28.6mm hollow shaft
- 24 Hp, 17.7 kW max power
- Input speed 3100 rpm
- Output speed 1450 rpm
- 2.176:1 reduction
- See Tech Documents for other pump compatibilty
